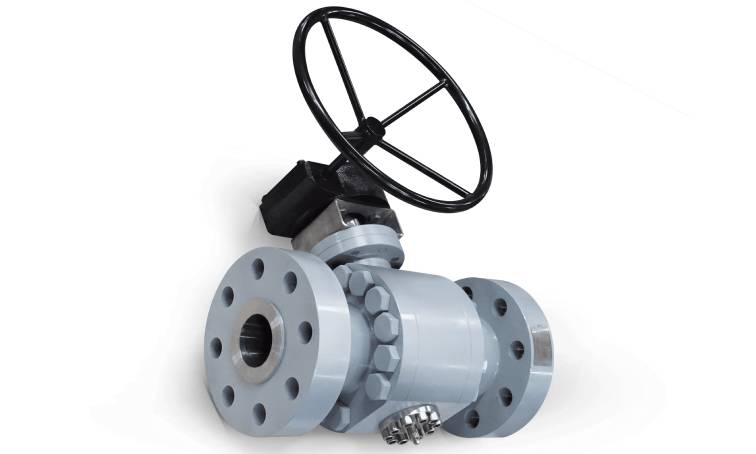

Temas International has extensive experience in supplying Trunnion Mounted, Side & Top Entry Ball Valves, both Soft and Metal Seated.

Size: 2” up to 56“ (DN 50 up to DN 1400)

Materials: Carbon Steels, Low Temperature Carbon Steel, Martensitic Steels, Austenitic Stainless Steel, Duplex Stainless Steels, Super Duplex Stainless Steels, Alloys, Nickel Aluminum Bronze, Hastelloy, Inconel, Titanium Alloy & Carbon Steel with Internal Corrosion Resistant Alloy (CRA) Overlay.

Design Standard: API 6D, API 608

Pressure / Temperature Rating: ASME B 16.34

Test (Inspection) Standard: API 6D, ISO 5208 API 6FA, ISO 10497, API607, BS 6364

Construction Details: Single / Two / Three Piece Design / Side Entry

End Connection: Flanged, Butt-Weld

Operator / Actuator: Lever, Gear, Actuator (Pneumatic, Hydraulic, Electro-Hydraulic and Electric Motorised)

Special Design Feature also available:

• Cryogenic Design
• Subsea Design
• Stem Extension
• Single & Double Piston Seat Design
• Primary Metal and Secondary Soft Seat Design
• Emergency Seat and Stem Sealant Injection
